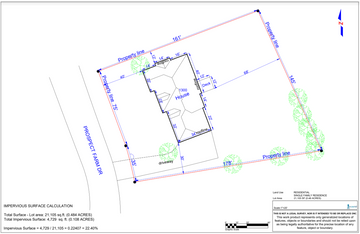

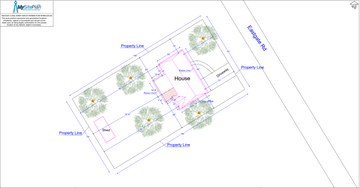

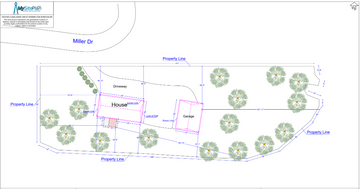

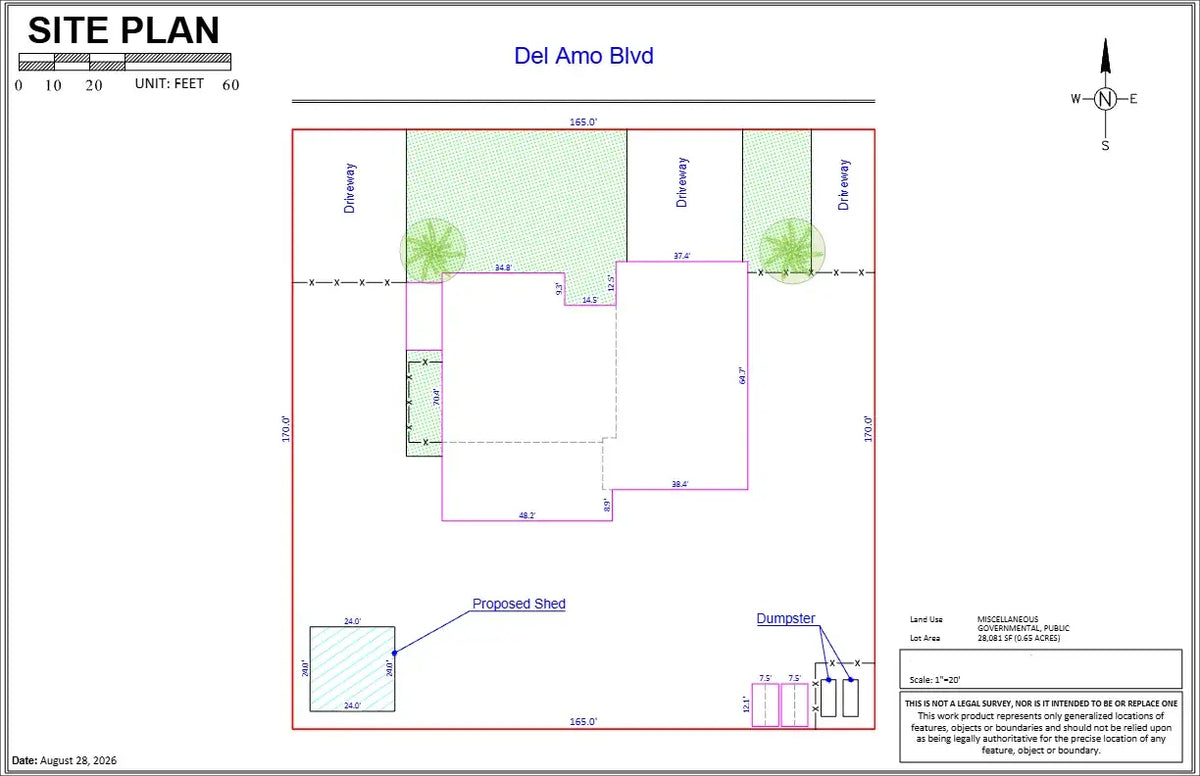

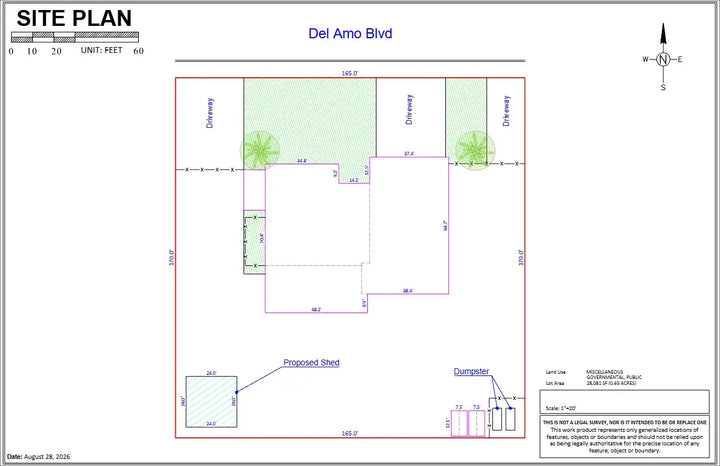

Medium Site Plan | Residential

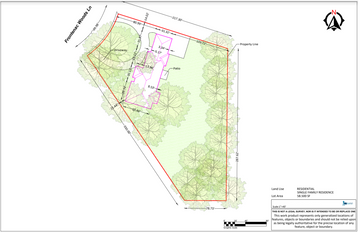

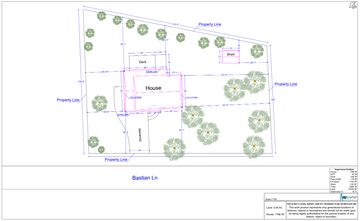

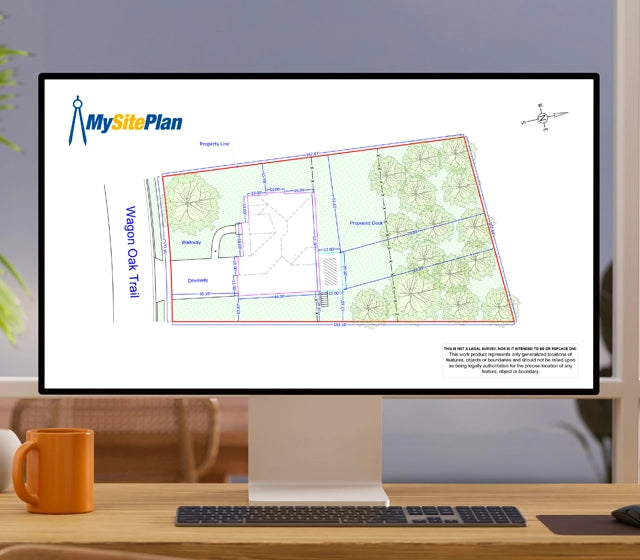

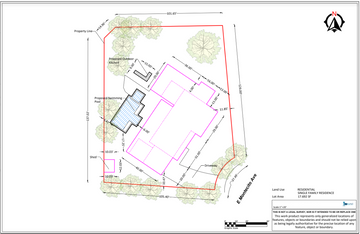

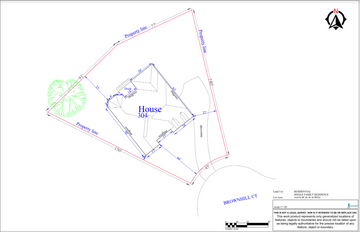

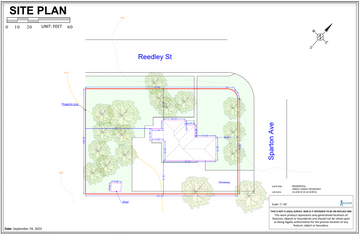

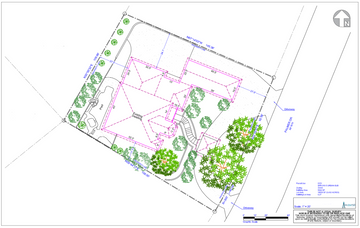

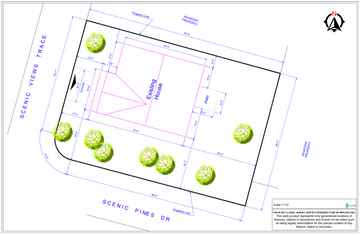

Plot PLAN INCLUDES EXISTING FEATURES:

Property Lines
Primary Structure
Lot Dimensions
North Arrow
Scale
Measurements Between Major Features
Trees
Swimming Pool
Accessory Structures
Driveway

Product Description
Overview

Widely accepted by building departments and HOA’s for residential permitting purposes.

Using the most recent satellite imagery available,  GIS Data and any information provided by client, we draw the site plan of your property to include EXISTING structures, trees, Driveway, and pool if present. The first draft of the site plan will be sent to you for your review. If there are any changes that are required such as updating dimensions or missing items due to tree cover you may sketch those onto the plan and send it back to us to have those revised free of charge.



If you would like to add a structure that is not currently on the property please select the option below "Add Non-existing feature" and provide that information to us.



*This is not a Survey, nor is it intended to be or replace a  Survey. Please verify with your building department that they DO NOT require a certified site plan prepared by a Surveyor, Architect, or Engineer. We are a Drafting Firm and do not stamp plans. Our plans are Non-Certified Learn More



Shopify secure badge

Uses

Examples of Uses for This Drawing:



  • -Applying for a building permit for a new outdoor structure (Shed, fence, deck, gazebo, etc.)

  • -Applying for a demolition permit for the demolition of your house or another structure

  • -A road map for having yard word done. Mark up your instructions to avoid any confusion

  • -Sketching out a new roof line

  • -Event planning

  • -Landscape planning

  • -Applying for building permits in cities with tree protection requirements. Planning departments find it useful to determine if any extra protection is required for trees on the property.





Additional Information

**Our standard plans are NOT intended for vacant properties. If the parcel is vacant (no existing structures or features), please submit a quote request HERE and our team will get back to you with a quote for a conceptual layout.



*For parcels over 10 acres please contact us to verify price.





$119.00
Maximum quantity available reached.

Additional Services

Floor Plans

A floor plan is a scaled diagram of the arrangement of rooms in one story of a building.

While we don't visit your home to make the measurements we are able to take a rough sketch provided by you and recreate your floor plan in AutoCAD.

If you would like for us to conceptualize a space we are able to take the exterior wall dimensions and create living spaces to your specifications. Have a 1000 square foot residence and want a 2 bedroom, 1 bath with kitchen and living area? We can create a series of options for you to understand the use of that space. This is also a popular service for commercial applications for tenant improvement possibilities.

We have done many large scale conceptual layouts for proposed Hotels, Apartment buildings, Elderly care facilities and much more.

Real Estate Marketing

Showing the full potential of a property sometimes requires more than just imagination. We can take a parcel and create visual representation of what the possibilities of that piece of land are. We create 2D and 3D concepts that show how buildings, parking, and landscape fit onto the given space. These marketing plans are great to show potential buyers, planning commissions, or investors who you need to understand your vision.

Sub Division Design

Looking at buying or own a large piece of land and want to know how many parcels will be able to fit? We can use your specifications of desired lot size, setbacks, streets, common areas, landscape, sidewalks and create a site plan that shows how that subdivision could be split. This is a great service for developers who want to understand the potential of a given piece of property.
