Detailed Site Plan | Residential & Commercial Site Plans

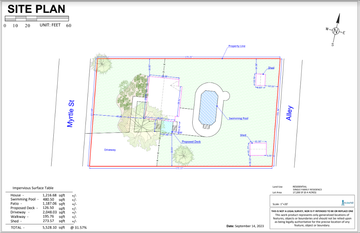

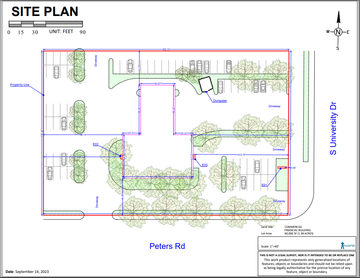

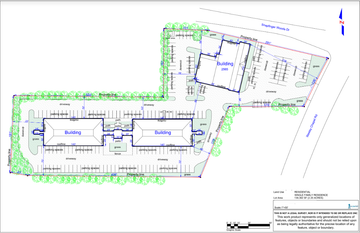

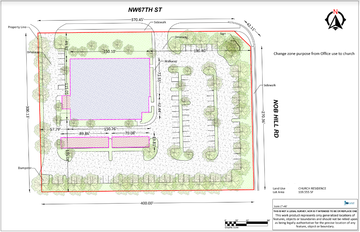

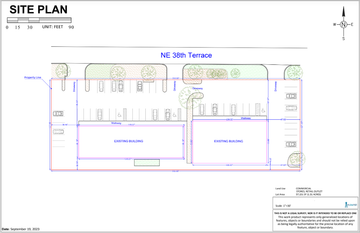

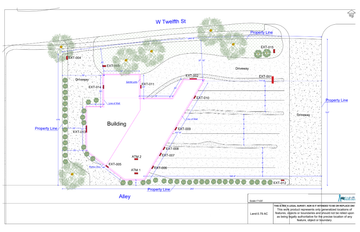

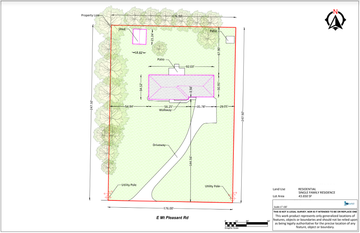

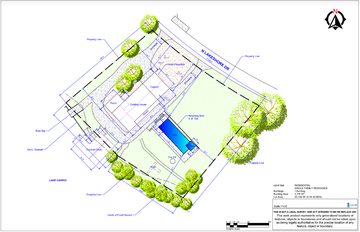

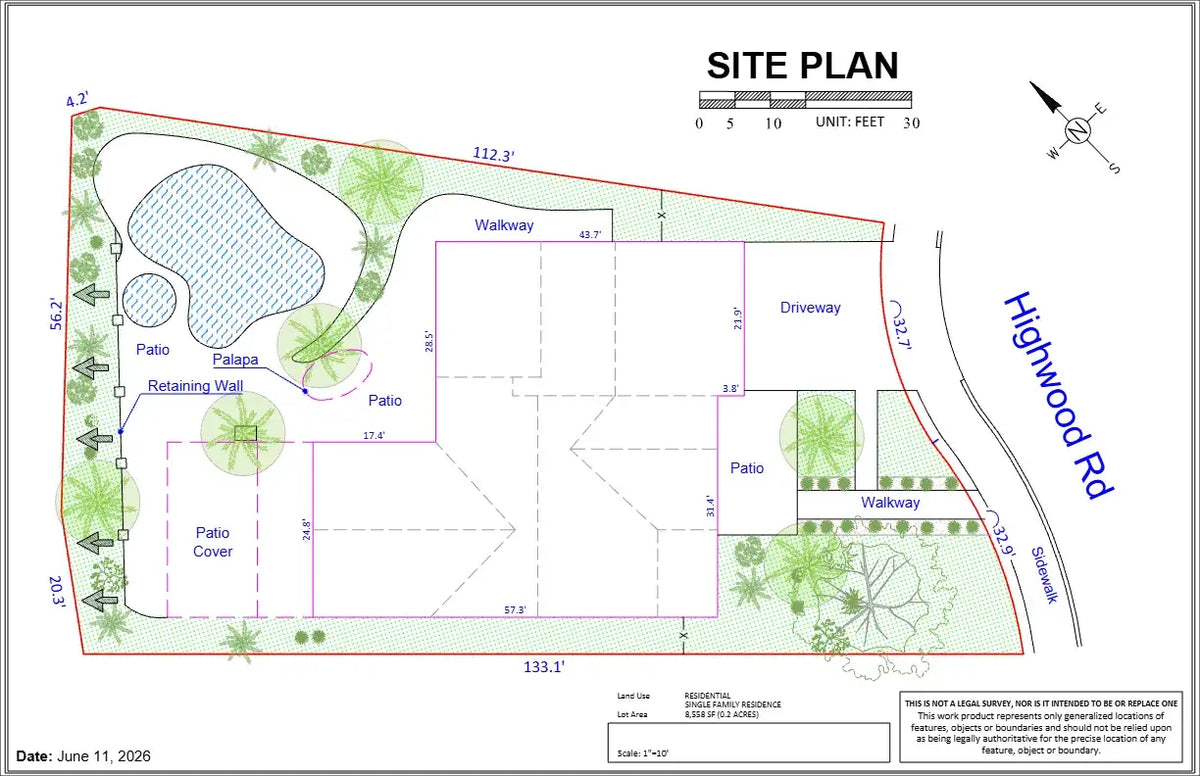

Plot PLAN INCLUDES EXISTING FEATURES:

Property Lines
Primary Structure
Lot Dimensions
North Arrow
Scale
Measurements Between Major Features
Trees
Swimming Pool
Accessory Structures
Landscape
Driveway
Paths
Shrubs
Lawn
Roofline
Parking Spaces

Product Description
Overview

A higher level of detail for permitting of both residential and commercial properties.

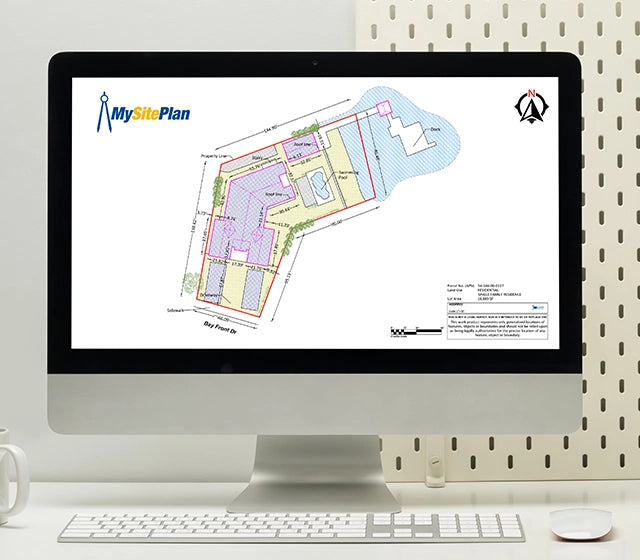

We will draft a detailed site plan of your property showing all EXISTING (visible via satellite) landscaping, such as structures driveways, pathways, patios, gazebos, grass, trees, structures, swimming pool, sheds, Parking spaces etc. The draft site plan will be sent to you for your review. If there are any changes that are required such as updating dimensions or missing items due to tree cover you may sketch those onto the plan and send it back to us to have those revised free of charge.



If you would like to add a structure that is not currently on the property please select the option below "Add Non-existing feature" and include the information to be added.



*This is not a Survey, nor is it intended to be or replace a Survey. Please verify with your building department that they DO NOT require a certified site plan prepared by a Surveyor, Architect, or Engineer. We are a Drafting Firm and do not stamp plans. Our plans are Non-Certified Learn More



*For commercial parcels over three acres please contact us to verify price.

Uses

Examples of Use for this Drawing:

  • -Applying for a building permit for a new outdoor structure (Shed, gazebo, fence etc.)
  • -Applying for a demolition permit for the demolition of your house or another structure
  • -A swimming pool removal or remodel
  • -A road map for having yard word done. Mark up your instructions to avoid any confusion.
  • -Conditional Use Permit for Commercial Properties
  • -Thinking of re-doing your landscape? Start with this plan to begin your process of what to keep and what to eliminate
  • -Parking analysis
Additional Information

**Our standard plans are NOT intended for vacant properties. If the parcel is vacant (no existing structures or features), please submit a quote request HERE and our team will get back to you with a quote for a conceptual layout.



Shopify secure badge



$159.00
Maximum quantity available reached.

Additional Services

Floor Plans

A floor plan is a scaled diagram of the arrangement of rooms in one story of a building.

While we don't visit your home to make the measurements we are able to take a rough sketch provided by you and recreate your floor plan in AutoCAD.

If you would like for us to conceptualize a space we are able to take the exterior wall dimensions and create living spaces to your specifications. Have a 1000 square foot residence and want a 2 bedroom, 1 bath with kitchen and living area? We can create a series of options for you to understand the use of that space. This is also a popular service for commercial applications for tenant improvement possibilities.

We have done many large scale conceptual layouts for proposed Hotels, Apartment buildings, Elderly care facilities and much more.

Real Estate Marketing

Showing the full potential of a property sometimes requires more than just imagination. We can take a parcel and create visual representation of what the possibilities of that piece of land are. We create 2D and 3D concepts that show how buildings, parking, and landscape fit onto the given space. These marketing plans are great to show potential buyers, planning commissions, or investors who you need to understand your vision.

Sub Division Design

Looking at buying or own a large piece of land and want to know how many parcels will be able to fit? We can use your specifications of desired lot size, setbacks, streets, common areas, landscape, sidewalks and create a site plan that shows how that subdivision could be split. This is a great service for developers who want to understand the potential of a given piece of property.
