Solar Permit Site Plans for Residential Projects
A solar permit is the local approval required before most residential solar installations can begin. The application commonly combines property context, equipment placement, structural information, and electrical documents so reviewers can confirm that the proposed work follows local building, fire, zoning, and electrical requirements.
Get a permit-ready solar site plan online in under 24 hours.
A solar permit site plan gives reviewers a property-wide view of the proposed project. It can show the home, lot boundaries, roof or ground array location, utility equipment, access paths, and relevant setbacks. It supports the complete application but does not replace structural or electrical documents required by the local office.
The exact package depends on the jurisdiction, project type, and equipment. A rooftop array may need different supporting documents than a ground-mounted system or a project that includes battery storage. Checking the local checklist before ordering plans is the simplest way to prevent avoidable revisions.
What does a solar permit usually require?
Most solar permit applications require an application form, site plan, array layout, equipment specifications, structural details, and electrical diagrams. Some jurisdictions also request fire-access details, battery-storage information, HOA approval, or utility interconnection documents. Always use the current checklist from the authority reviewing the project.
Permit reviewers look at several parts of a residential solar project. Building staff evaluate how the equipment relates to the structure and property. Electrical reviewers focus on wiring, grounding, disconnects, and interconnection. Fire officials may review roof access and battery placement. The utility may have a separate approval process before the system can operate.
Core application documents
- Application forms: The local office may require separate building and electrical forms.
- Site plan: This shows the property context, structures, array location, equipment areas, and requested setbacks.
- Array or roof layout: Reviewers can see panel placement, roof edges, and access paths.
- Equipment information: Product sheets identify the proposed panels, inverter, racking, disconnects, and batteries.
- Technical documents: Structural calculations and electrical diagrams may be needed based on local rules.
A site plan for a building permit provides the broad property view. It helps reviewers connect the proposed solar equipment to the home, boundaries, access areas, and other improvements. It is one component of the application, not the entire plan set.
Why local requirements differ
Solar permit requirements vary because jurisdictions adopt and administer codes differently. System size, roof type, battery storage, historic-district rules, and local fire requirements may all affect the checklist. Start with the current local instructions rather than relying on a generic package from another city.
The U.S. Department of Energy explains that permitting and inspection are part of the non-hardware costs associated with rooftop solar. Its rooftop solar permitting and inspection resource also describes efforts to make reviews more consistent and efficient.
How a site plan supports a solar permit application
A site plan helps the reviewer understand where the proposed solar project sits on the property. It connects the array and utility equipment to buildings, boundaries, access routes, and setbacks. That context helps identify conflicts early and makes the other technical documents easier to evaluate.
Property and equipment context

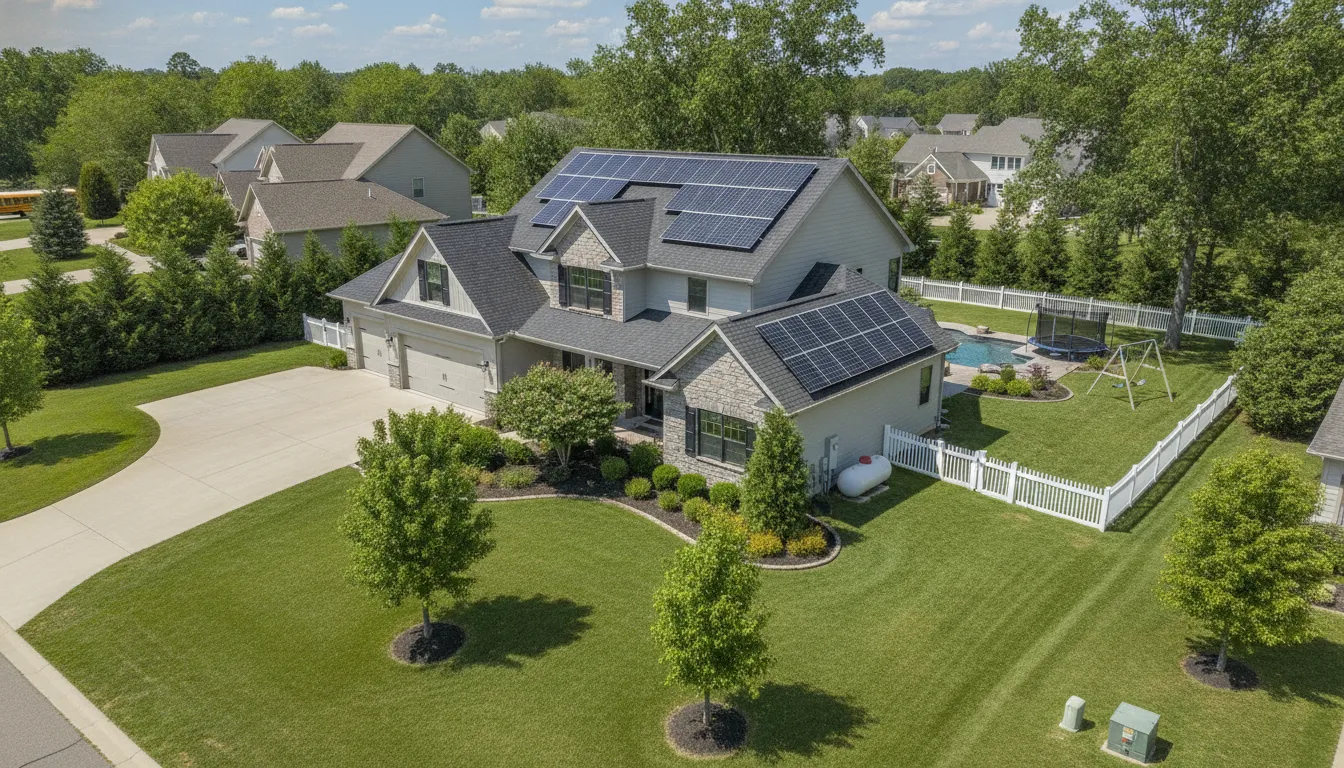

For a rooftop project, the site plan can identify the home, roof area, electrical service location, and related equipment. For a ground-mounted array, it can show the proposed installation area, distance from lot boundaries, access, and the route toward the home or service equipment. When batteries are part of the project, their proposed location should also be clear.
The customer supplies known project details, utility notes, and local requirements. My Site Plan then prepares a clear remote site plan using available satellite and GIS-based information, without a required site visit. This approach can help homeowners organize the property-context portion of a permit package quickly.
What the site plan does not replace
A site plan does not replace electrical one-line diagrams, equipment specifications, structural calculations, or other technical documents the jurisdiction requires. Those items address how the system is built and operates. The site plan addresses where the project is located and how it relates to the property.
Confirm the complete submission list with the local office before ordering. If an engineer or licensed electrical professional is required for part of the package, arrange that work separately. My Site Plan focuses on the site plan portion and includes unlimited revisions if the reviewing building department or HOA requests changes within that scope.
Choose a detailed Medium Site Plan for your residential solar project.
Solar permit site plan checklist
Before ordering a solar permit site plan, collect the property address, local checklist, proposed array location, equipment locations, utility notes, and known setback or access requirements. Providing these details at the start gives the drafter a clearer brief and reduces the chance of preventable review comments.
- Get the local checklist. Ask which departments review solar work and which forms or drawings each one expects.
- Confirm the property address. Provide the full address and any parcel information requested by the local office.
- Choose the array location. Identify the intended roof area or ground-mounted installation area.
- Mark equipment locations. Note the meter, service panel, inverter, disconnects, batteries, and other known equipment.
- Share utility notes. Include available interconnection instructions or required utility details that affect the site plan.
- Identify access and setbacks. Note known roof access paths, property setbacks, easements, or HOA conditions.
- Verify supporting documents. Confirm who will prepare the electrical, structural, and product-information portions of the package.
Do not guess when a requirement is unclear. Send the exact wording from the local checklist or reviewer comment. Clear source information makes revisions faster and helps keep the project moving.
Roof-mounted vs. ground-mounted solar permit details
Roof-mounted solar reviews emphasize roof layout, access paths, attachment details, and structural capacity. Ground-mounted reviews emphasize property setbacks, zoning, array footprint, height, and the route back to electrical equipment. Both project types may also require electrical and utility documents beyond the site plan.
| Project type | Site plan focus | Common supporting review |
|---|---|---|
| Roof-mounted | Home, roof array, equipment, and access context | Structural attachment and electrical details |
| Ground-mounted | Array footprint, boundaries, setbacks, and route to service | Zoning, structural, trenching, and electrical details |
| System with batteries | Battery and related equipment locations | Fire, electrical, and manufacturer requirements |
Roof-mounted projects
A rooftop submission typically needs a roof layout in addition to the overall property context. Reviewers may check panel arrangement, access routes, ridge and edge clearances, attachment method, and the structure's ability to support the system. Requirements depend on the adopted codes and local review process.
Ground-mounted projects
A ground-mounted system uses more of the lot, so boundaries, setbacks, easements, height, and access can receive closer attention. Reviewers may also need to understand grading, foundations, trenching, or screening. See My Site Plan's ground-mount solar site plan case study for a related project context.
If solar work is part of a larger roof project, the roofing permit guide explains additional permit considerations that may apply.
When are engineered electrical plans also needed?
Engineered or professionally prepared electrical documents may be needed when the jurisdiction requires wiring diagrams, load calculations, grounding details, equipment specifications, or utility interconnection information. A site plan shows where the project sits, while electrical documents explain how the system connects and operates.
Many solar applications include both building and electrical reviews. The City of Boston solar panel guidance lists building and electrical permit steps. Your jurisdiction may organize the process differently, so use its instructions as the authority.
Structural and electrical scope
Structural documentation may address roof loading, attachment, wind, or ground-mount foundations. Electrical documentation may address system layout, conductor sizing, grounding, disconnects, and connection to the service equipment. Product sheets help reviewers connect the proposed equipment to those technical documents.
Utility and battery requirements
Utility interconnection is often separate from the local permit. Battery storage can add another layer of fire and electrical requirements. Ask the utility and local office which approvals must happen before installation, inspection, and permission to operate.
My Site Plan does not prepare engineered electrical plans. The team can prepare the property-focused site plan while the homeowner, installer, or appropriate professional coordinates the remaining technical documents.
Compare transparent site plan pricing before submitting your solar permit.
How to prepare for a smoother solar permit review
A smoother solar permit review starts with the correct local checklist and a coordinated set of documents. Make sure the address, array location, equipment names, and project scope match across every sheet. Respond to reviewer comments directly, then update all affected documents before resubmitting.
Coordinate details before submission
Small inconsistencies can create unnecessary questions. If the inverter location changes, update every sheet that shows it. If the array size changes, confirm that the layout, specifications, and electrical documents all reflect the same scope. Use a simple document checklist before submitting.
Respond clearly to comments
Reviewer comments are often specific requests for missing or revised information. Work through them one at a time, identify the responsible document, and provide a clear response. My Site Plan offers unlimited revisions for site plan review comments within the ordered scope, helping customers address requested changes without starting over.
Common solar permit delays to avoid
Common solar permit delays include missing checklist items, conflicting information between drawings, unclear equipment locations, incomplete technical documents, and late utility coordination. Most are preventable. Verify the submission requirements first, assign responsibility for every document, and conduct one coordinated review before filing.
- Using an outdated checklist: Confirm that forms and instructions are current.
- Leaving locations unclear: Show where the array, service equipment, inverter, and batteries are proposed.
- Submitting conflicting details: Keep addresses, equipment names, and project scope consistent.
- Missing technical documents: A site plan alone may not satisfy structural or electrical review requirements.
- Waiting on utility coordination: Identify interconnection steps early.
- Ignoring HOA requirements: If an HOA reviews exterior improvements, include that process in the schedule.
Speed comes from preparation, not from skipping steps. My Site Plan provides remote online site plans with a 24-hour turnaround for standard orders, guaranteed acceptance by building departments and HOAs where applicable, unlimited revisions, and a 100% money-back guarantee. Review the available site plan services to select the right level of detail.
Frequently asked questions about solar permits
How much does a solar permit cost?
Permit fees depend on the jurisdiction and project. Some locations use fixed residential solar fees, while others calculate costs based on project scope or valuation. Check the local fee schedule and ask whether building, electrical, fire, or plan-review fees are charged separately.
Can you install solar panels without a permit?
Most residential installations require local approval before work begins. Starting without required approval can lead to stop-work orders, added fees, failed inspections, or removal of unapproved work. Confirm the rules with the local office before installation.
Can you get a solar permit online?
Many jurisdictions accept digital applications, but the process varies. Check whether the local office has an online portal and note its file-format rules. My Site Plan can deliver the site plan portion online, making it easier to include in a digital submission.
Does a site plan replace electrical drawings?
No. A site plan shows property context and proposed equipment locations. Electrical drawings show how the system connects and operates. A jurisdiction may require both, along with structural information and equipment specifications.
