How Russ from Henderson, North Carolina got his Site Plan for a Pool Patio.

The Project

Russ needed a site plan for his Pool Patio in Henderson, North Carolina. They wanted a fast and easy solution.

The Site Plan Package

Medium Site Plan - Perfect for
Pool Patio.
Russ chose our Medium Site Plan because it offered exactly what his city required.

What Medium Site Plan Includes:

Property Lines

Lot Dimensions

North Arrow

Scale

Measurements between features

Proposed Structures

Driveway

Walkway

Driveway

Garage

Swimming Pool

★★★★★
It was great!

My entire experience with MySitePlan was great! I needed a plan in 3 days, and they were able to submit it even faster! It was approved by county inspectors.

Russ B

Get Your Pool Patio Approved Fast - See All Packages

SEE ALL SITE PLAN PACKAGES

Requirements For A Pool Patio

Russ B. sought a Medium Site Plan for his residential property to secure a permit for installing a new pool patio in Henderson, North Carolina. Recognizing the importance of proper documentation to ensure compliance with local zoning regulations, Russ turned to MySitePlan. He needed a site plan that would not only highlight the existing property layout but also integrate the specifications of the proposed pool patio, positioned 8 feet from the property line as per local guidelines.

Project Type

Pool Patio

Delivery Time

16hrs

Revisions

One

File Type

PDF

PROCESS DETAILS

Drafting A Site Plan For A Pool Patio

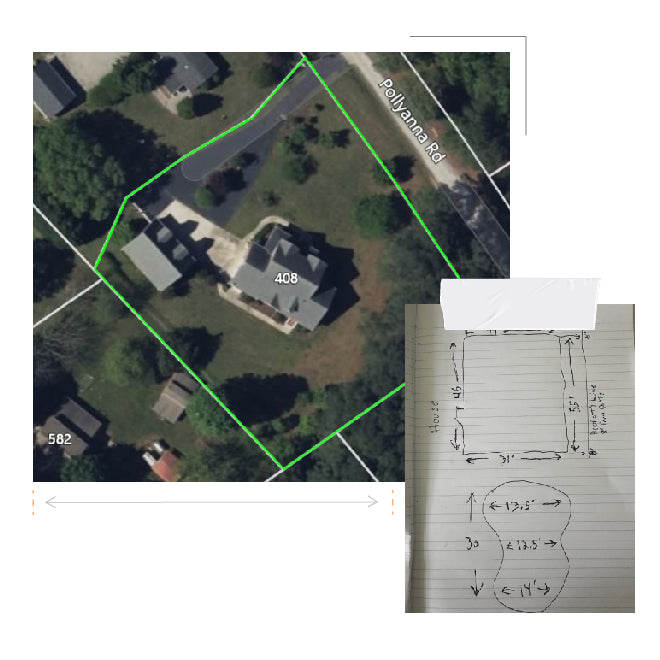

Upon receiving Russ’s initial order, our team employed advanced GIS and Satellite Imagery to create a comprehensive representation of his property. After submitting our initial draft, Russ provided us with a drawing that included updated dimensions for the pool patio, necessitating a revision to ensure it to be up-to-date with his specifications. Our team quickly adapted the site plan to reflect these changes, demonstrating our commitment to precision and client collaboration. This process allowed us to finalize a site plan that met all the requirements for the permit application within a short timeframe.

SOLUTION DETAILS

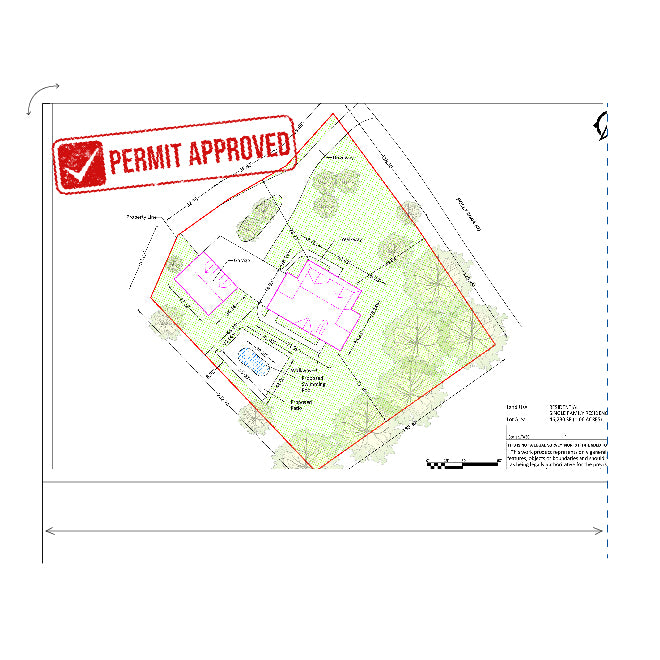

A Medium Site Plan Approved

At MySitePlan, we pride ourselves on providing high-quality, swift drafting services tailored to the specific needs of each customer, whether for residential ,commercial, or any type custom projects. Russ’s successful permit acquisition for his pool patio project is a testament to the effectiveness of our tailored site planning services, ensuring clients like him can achieve their project goals with minimal hassle and maximum satisfaction.
