How Patrick from Haverhill, Massachusetts got his Site Plan for a Medium Site Plan.

The Project

Patrick needed a site plan for his Medium Site Plan in Haverhill, Massachusetts. They wanted a fast and easy solution.

The Site Plan Package

Building An Addition - Perfect for  Medium Site Plan.
Patrick chose our Building An Addition because it offered exactly what his city required.

What Building An Addition Includes:

Property Lines

Lot Dimensions

North Arrow

Ease Line

Scale

Measurements between features

Proposed Structures

Vicinity Map

Driveway

Pool

Walkway

★★★★★

Consistent!

I love this service! I always receive my site plan right away. They can draw well. Five stars and Kudos to MySitePlan!

Patrick M.

Get Your Medium Site Plan Approved Fast - See All Packages

SEE ALL SITE PLAN PACKAGES

Requirements for Building A New Addition

Patrick M. required a Medium Site Plan for his residential property to secure a building permit for a new addition in Haverhill, Massachusetts. The addition, a 30x20 space with a garage under the master bedroom, was planned to replace the existing deck at the left back corner of the house. Understanding the importance of a detailed and proper site plan for local approval, Patrick turned to MySitePlan, trusting our expertise to capture all necessary details to facilitate the permitting process.

Project Type

New Addition

Delivery Time

18hrs

Revisions

One

File Type

PDF

PROCESS DETAILS

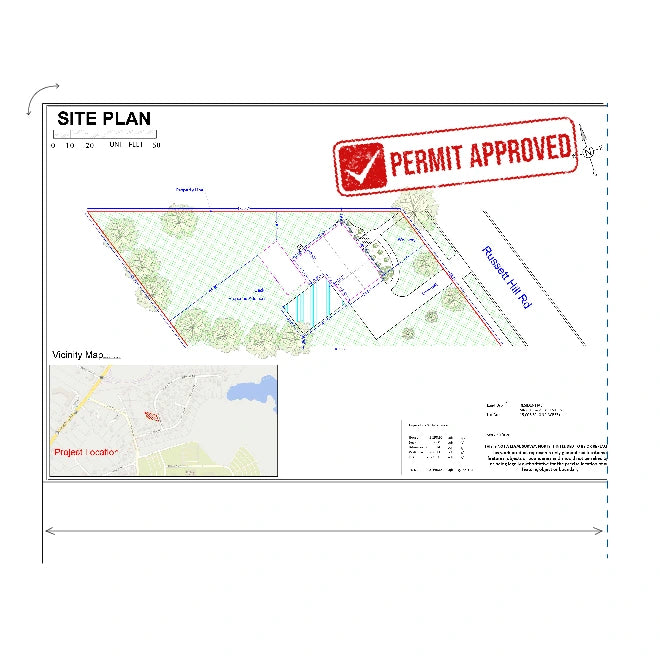

Drafting A Site Plan For Building A New Addition

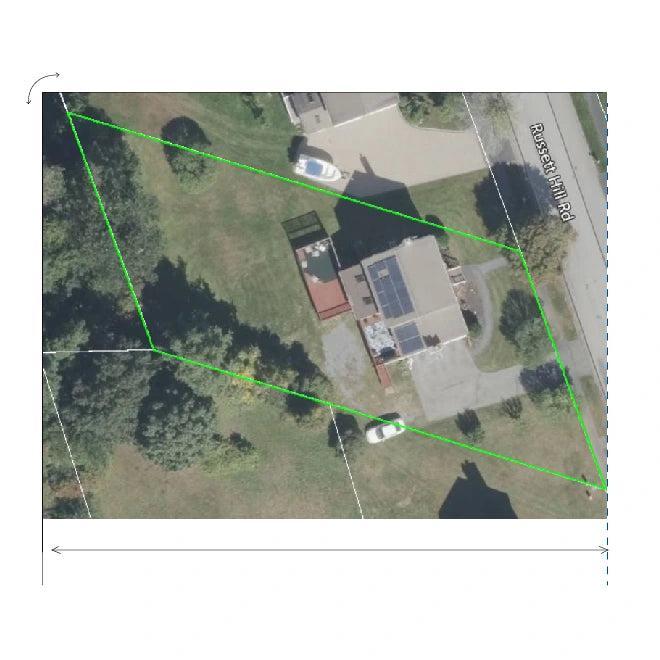

Upon receiving Patrick’s specifications, our team conducted a thorough review of his property to ensure all existing structures and landscape features were accurately documented. Using advanced GIS and Satellite Imagery, we then crafted a detailed site plan that not only outlined the new addition but also complied with all local zoning and building codes. The site plan included all relevant dimensions and strategic placements needed for the permit. This meticulous approach allowed us to provide Patrick with his finalized site plan swiftly, aiding in a smooth and quick permit approval process.

SOLUTION DETAILS

A Detailed Site Plan Approved

At MySitePlan, we pride ourselves on providing high-quality, swift drafting services tailored to the specific needs of each customer, whether for residential ,commercial, or any type custom projects. Patrick's feedback highlighted the efficiency and professionalism of our process, and he is now one of the thousands of customers who were able to streamline their permitting processes with minimal hassle from start to finish.
