How Robert G. from South Rim, Utah got his Site Plan for a Barn Shop Permit.

The Project

Robert G. needed a site plan for his Barn Shop Permit in South Rim, Utah. They wanted a fast and easy solution.

The Site Plan Package

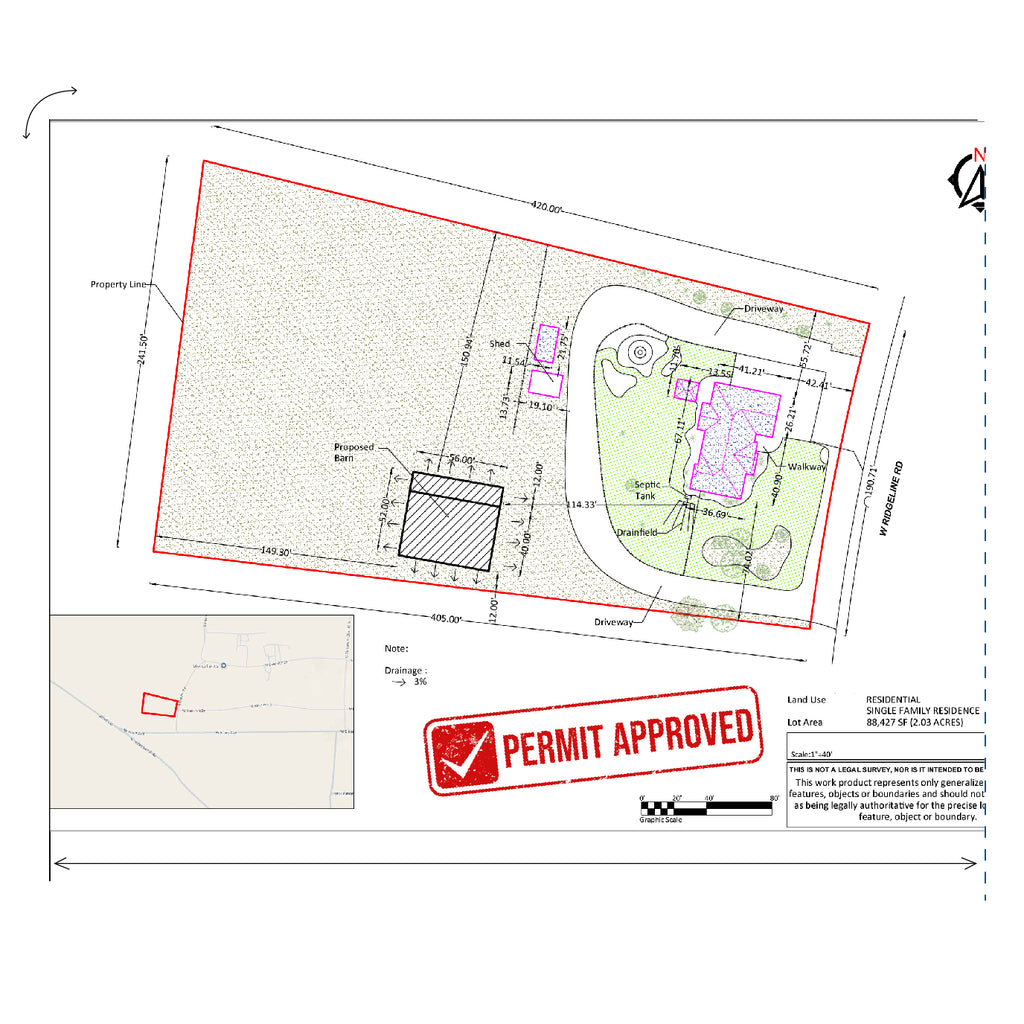

Detailed Site Plan - Perfect for
Barn Shop Permit.
Robert G. chose our Detailed Site Plan because it offered exactly what his city required.

What Detailed Site Plan Includes:

Property Lines

Lot Dimensions

North Arrow

Scale

Measurements Between Features

Proposed Structures

Vicinity Map

Septic Tank

Drainage

Walkway

Driveway

Shed

Trees

★★★★★
Excellent service!

My experience was great! Had a few correction and it was no problem. They did promptly.

Robert G.

Get Your Barn Shop Permit Approved Fast - See All Packages

SEE ALL SITE PLAN PACKAGES

Requirements For A Barn Shop Permit

Robert G. needed a Detailed Site Plan to obtain a building permit for a new barn shop on his property in South Rim, Utah. The county required a highly specific layout that included a north arrow and scale, lot access points, full property boundary lines with setback and easement markings, and the lot’s overall coverage percentage. Additional required information included the location of any wells, septic systems and drain fields, and all distance measurements from structures to property lines. Drainage and grading details—such as a 5% slope or 6" fall within the first 10 feet of the structure—were also essential to meet the local regulations. To ensure proper documentation, Robert included a rough location photo and correspondence from the county in his submission.

Project Type

Barn Shop

Project Type

24hrs

Revisions

Zero

File Type

PDF

PROCESS DETAILS

Drafting A Site Plan For A Barn Shop Permit

Once we received Robert’s materials, we began by ensuring his property’s visibility via GIS and Satellite Imagery. We then used this data to craft a clean, legible, and fully scaled site plan that incorporated all the necessary components, including structure footprints, distances, and on-site utility features. After submitting the initial plan, Robert returned with a few minor but important revisions—specifically, he needed directional arrows labeled to indicate a 3% drainage slope around the new barn shop. Our team quickly made the adjustments and finalized the plan within just 24 hours from the time of his order.

SOLUTION DETAILS

A Detailed Site Plan Approved

At MySitePlan, we understand how critical timely and proper documentation is when it comes to permitting. That’s why we strive to deliver fast, clear, and code-compliant plans that our clients can confidently submit to their local authorities. Robert was highly pleased with the level of professionalism and support he received, describing his experience with us as top-tier. With his final plan in hand and the permitting process now underway, Robert is one of many satisfied customers who turned to MySitePlan for a seamless site planning solution.

The #1 site plan drafting service for contracts, property managers, and tenants.

We've worked with hundreds of leading companies.

We’ve delivered more site plans than all our competitors combined

We’re the one with a 100% Money-back Guarantee*

Our Denver-based customer service team is friendly and responsive

EXPLORE PACKAGES & GET STARTED TODAY!
CERTIFIED REVIEWS

Loved by thousands of homeowners, contractors, and property managers.

We’ll just let our customers do the talking for us.


WHERE WE WORK

Site Plans approved in every county in every state*

*Except California… click here to find out why.

South Rim, Utah Barn Shop Permit FAQs

Frequently Asked Questions About Barn Shop Permits in South Rim, Utah

A site plan is essential in South Rim to demonstrate compliance with local zoning laws, including setbacks, drainage, and utility placements. It ensures your barn shop meets all regulatory requirements.

MySitePlan provides detailed site plans tailored to South Rim's regulations, incorporating necessary elements like property lines, drainage slopes, and utility locations to streamline your permit approval process.

Provide your property address, any existing surveys or sketches, details of proposed structures, and specific requirements from the local permitting authority. This ensures an accurate and compliant site plan.

MySitePlan typically delivers completed site plans within 24 hours, ensuring you can proceed with your barn shop permit application without delay.

Yes, MySitePlan's site plans are designed to meet South Rim's permitting requirements. They include all necessary details to facilitate approval, and revisions are offered if needed.

The cost varies based on project complexity. For detailed pricing, please visit MySitePlan's pricing page or contact their customer service for a personalized quote.
