Basic Site Plan

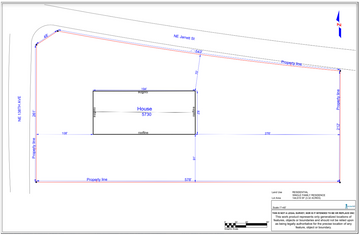

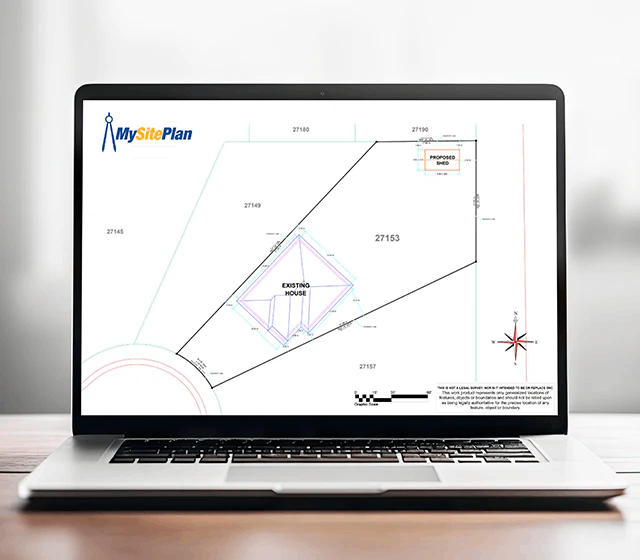

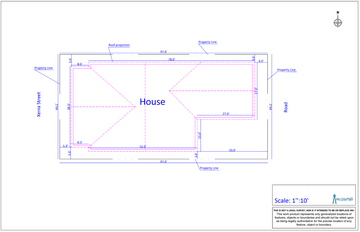

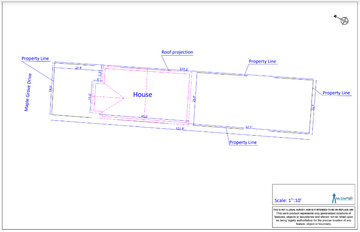

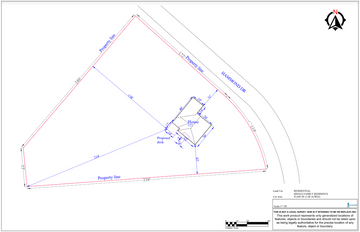

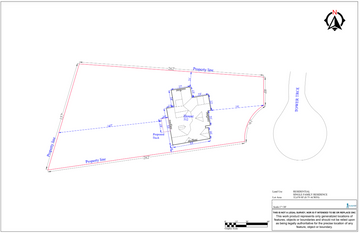

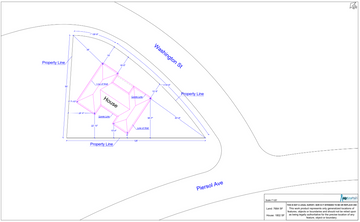

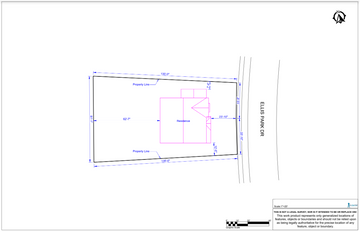

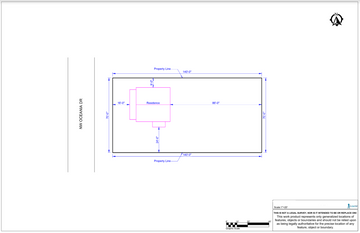

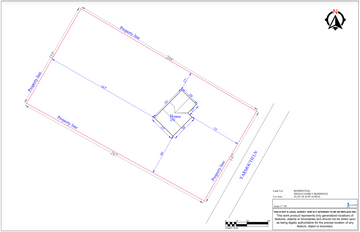

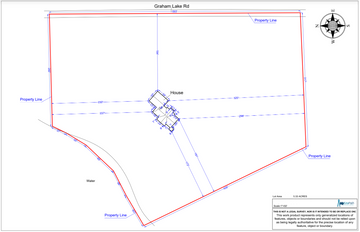

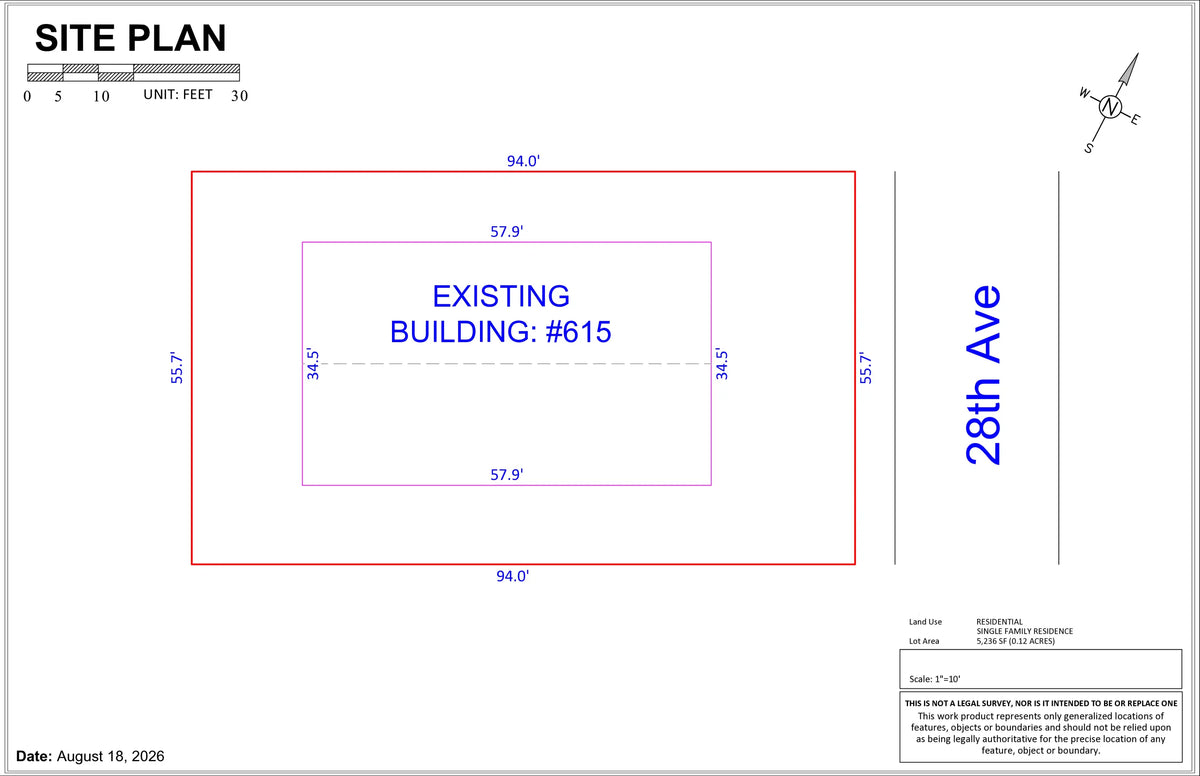

Plot PLAN INCLUDES EXISTING FEATURES:

GIS Property Lines
Primary Structure Roofline
Lot Dimensions
North Arrow
Scale
Measurements Between Major Features

Product Description
Overview

Our Basic Plot Plan (also known as site plan) will give you the basics of your property. We will use GIS and Satellite imagery to create the draft site plan. This plot plan will include EXISTING primary building roofline, lot lines, and a north arrow. While generally insufficient for building permits this plan is great for planning. Once we send you the draft site plan for review you will have the opportunity to verify any dimensions and mark up the plan with any needed changes and we will make any adjustments free of charge.



Our plot plans are Non-Certified:

This is not a Survey, nor is it intended to be or replace one.

Uses

Examples of Use for This Plot Plan Drawing:

-General understanding of property

 -A blank slate for you to mark up with landscape     ideas

-Sketching out a new roofline

 -Event planning



Additional Information

**Our standard plans are NOT intended for vacant properties. If the parcel is vacant (no existing structures or features), please submit a quote request HERE and our team will get back to you with a quote for a conceptual layout.



$99.00
Maximum quantity available reached.

Additional Services

Floor Plans

A floor plan is a scaled diagram of the arrangement of rooms in one story of a building.

While we don't visit your home to make the measurements we are able to take a rough sketch provided by you and recreate your floor plan in AutoCAD.

If you would like for us to conceptualize a space we are able to take the exterior wall dimensions and create living spaces to your specifications. Have a 1000 square foot residence and want a 2 bedroom, 1 bath with kitchen and living area? We can create a series of options for you to understand the use of that space. This is also a popular service for commercial applications for tenant improvement possibilities.

We have done many large scale conceptual layouts for proposed Hotels, Apartment buildings, Elderly care facilities and much more.

Real Estate Marketing

Showing the full potential of a property sometimes requires more than just imagination. We can take a parcel and create visual representation of what the possibilities of that piece of land are. We create 2D and 3D concepts that show how buildings, parking, and landscape fit onto the given space. These marketing plans are great to show potential buyers, planning commissions, or investors who you need to understand your vision.

Sub Division Design

Looking at buying or own a large piece of land and want to know how many parcels will be able to fit? We can use your specifications of desired lot size, setbacks, streets, common areas, landscape, sidewalks and create a site plan that shows how that subdivision could be split. This is a great service for developers who want to understand the potential of a given piece of property.
